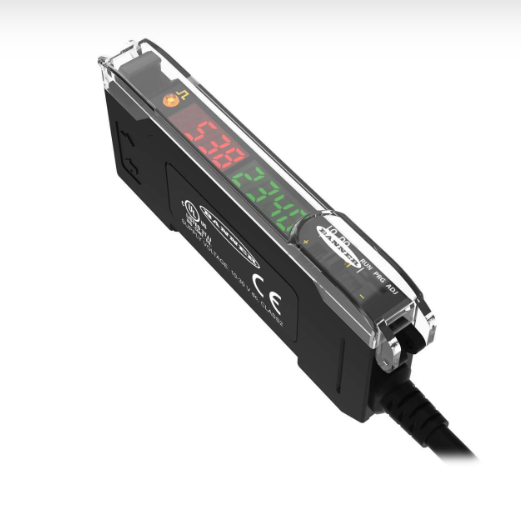

AMPLIFICADOR DE FIBRA ÓPTICA DF-G1-PS-2M BANNER

AMPLIFICADOR DE FIBRA ÓPTICA DF-G1-PS-2M BANNER

Cabo de 2mts
Saída PNP
Alimentação: 10-30Vdc
OBS: A Fibra óptica deverá ser adquirida separadamente.

Produto original, novo na caixa.

Power DC Cable Length (m) 2

IP Rating IP50

Accepts Fiber Termination Type

Unterminated Plastic Fibers or T5 Termination

NEMA / UL Type Rating

NEMA 4X Item Status

RELEASED Housing Style

DIN Rail Primary Housing Material

Thermoplastic Input/Output

Discrete Color LED - Amplifiers

Red Fiber Type

Plastic and Glass

Output PNP

Connection Cable

Output Type (Specific)

Single Discrete

Repeatability (µs) 66 to 100

Number of Pins 4

Max Op. Temperature [°C] 55

Min Op. Temperature [?C] -10

Max Op. Relative Humidity (%)

90% @ 60°C

Special Feature: Remote Teach

Yes Crosstalk Avoidance

Yes Intrinsically Safe

No Adjustments

Teach Button

Power Supply/Supply Voltage 10-30 V dc

Delay at Power-up (ms) 500

Indicator Display Type Dual Digital Displays

Minimum response time (ms) .2

Special Feature: Bussable Power No

Feature: Washdown Rated No

Feature: Timing (Hold/Delay) Yes

Feature: Audible No

Feature: Quick Disconnect No

Feature: Health/Marginal Signal Output No

IO Link No

Housing Material

Thermoplastic

EPLAN Status

Published

EPLAN Original Sent Date
